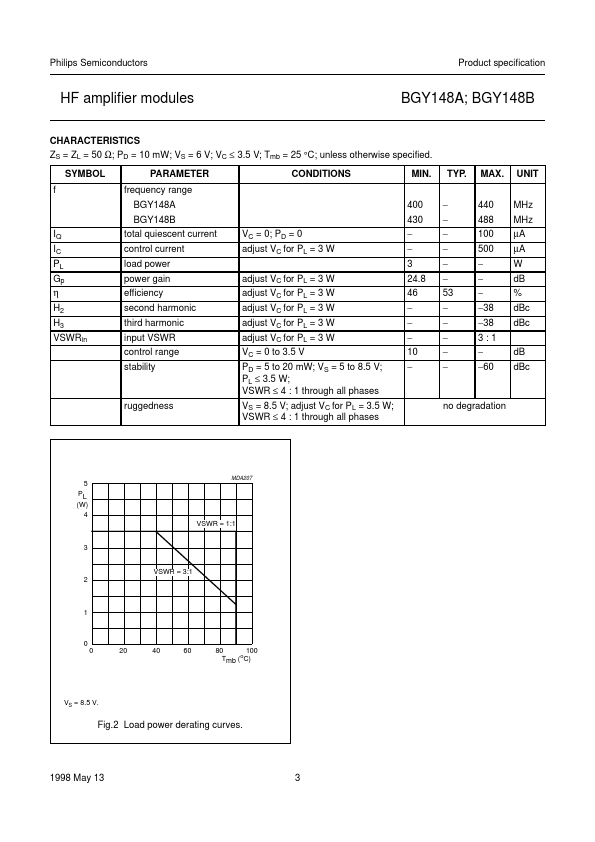

datasheet Preview Page 3

Datasheet Details

Part number	BGY148A
Manufacturer	NXP ↗
File Size	84.19 KB
Description	HF amplifier
Datasheet	BGY148A_PhilipsSemiconductors.pdf

BGY148A Product details

Description

The BGY148A and BGY148B are three-stage UHF amplifier modules in a SOT421A package.

Features

Single 6 V nominal supply voltage.
3 W output power.
Easy control of output power by DC voltage.
Silicon bipolar technology.
Standby current less than 100 µA.
