BGY148B Datasheet - NXP

HF amplifier

BGY148B Features

* Single 6 V nominal supply voltage

* 3 W output power

* Easy control of output power by DC voltage

* Silicon bipolar technology

* Standby current less than 100 µA. APPLICATIONS

* Portable communication equipment operating in the 400 to 440 MHz and 430

BGY148B General Description

The BGY148A and BGY148B are three-stage UHF amplifier modules in a SOT421A package. Each module consists of three NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic substrate. The modules produce an output power of 3 W into a load of.

BGY148B Datasheet (84.19 KB)

BGY148B Datasheet Preview — Preview of BGY148B PDF

Datasheet Details

Part number:

BGY148B

Manufacturer:

NXP ↗

File Size:

84.19 KB

Description:

Hf amplifier.

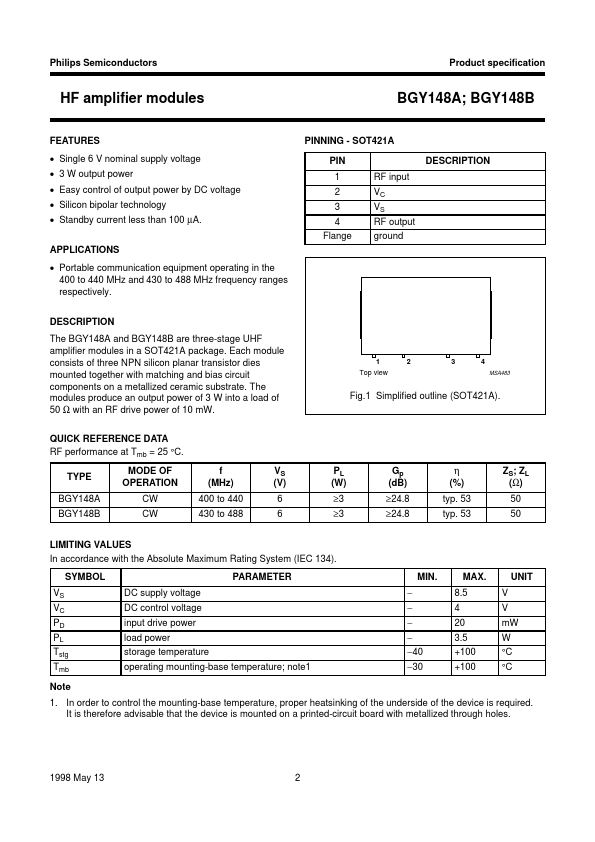

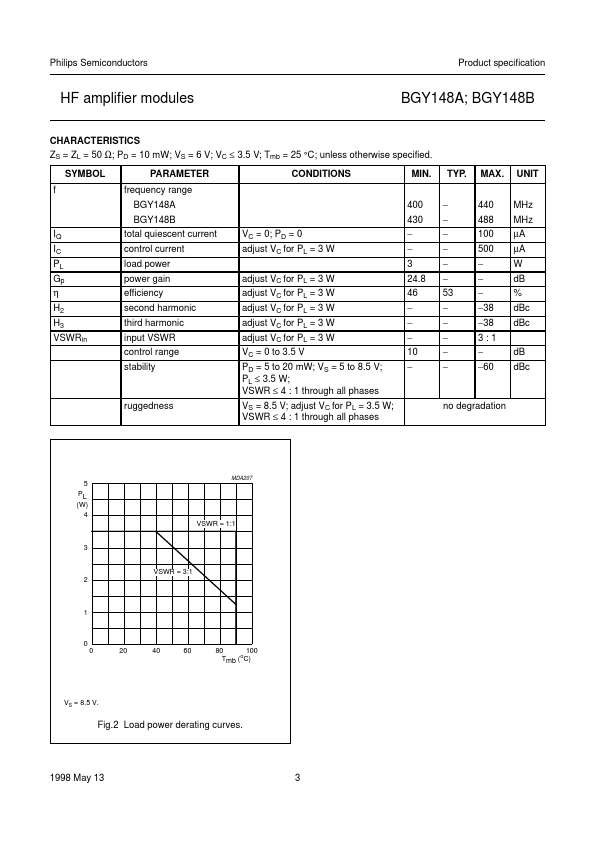

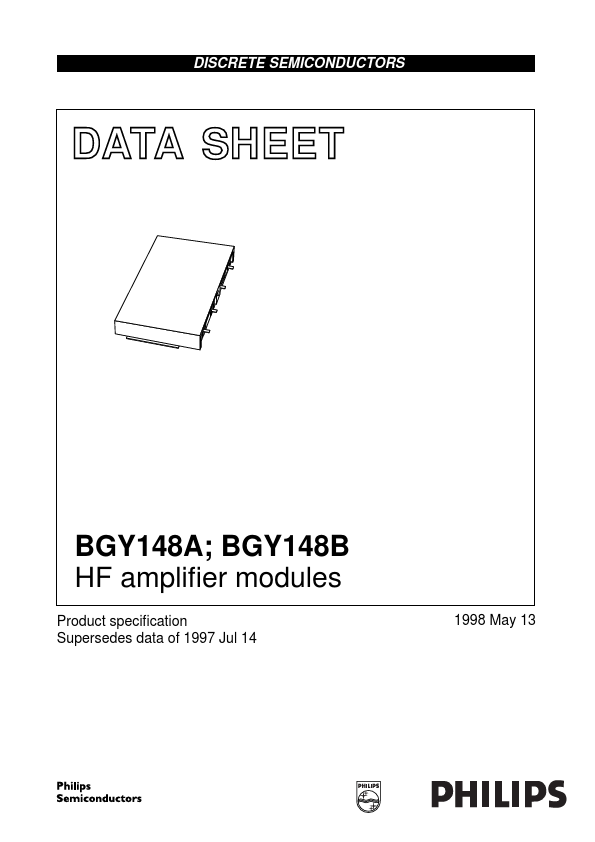

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D188 BGY148A; BGY148B HF amplifier modules Product speciﬁcation Supersedes data of 1997 Jul 14 .
