BGY916 Datasheet - NXP

UHF amplifier

BGY916 General Description

PINNING - SOT365A PIN 1 2 3 4 ﬂange RF input VS1 VS2 RF output ground DESCRIPTION handbook, halfpage The BGY916 is a three-stage UHF amplifier module in a SOT365A package. It consists of one NPN silicon planar transistor die and two silicon MOS-FET dies mounted on a metallized ceramic AlN substra.

BGY916 Datasheet (88.03 KB)

BGY916 Datasheet Preview — Preview of BGY916 PDF

Datasheet Details

Part number:

BGY916

Manufacturer:

NXP ↗

File Size:

88.03 KB

Description:

Uhf amplifier.

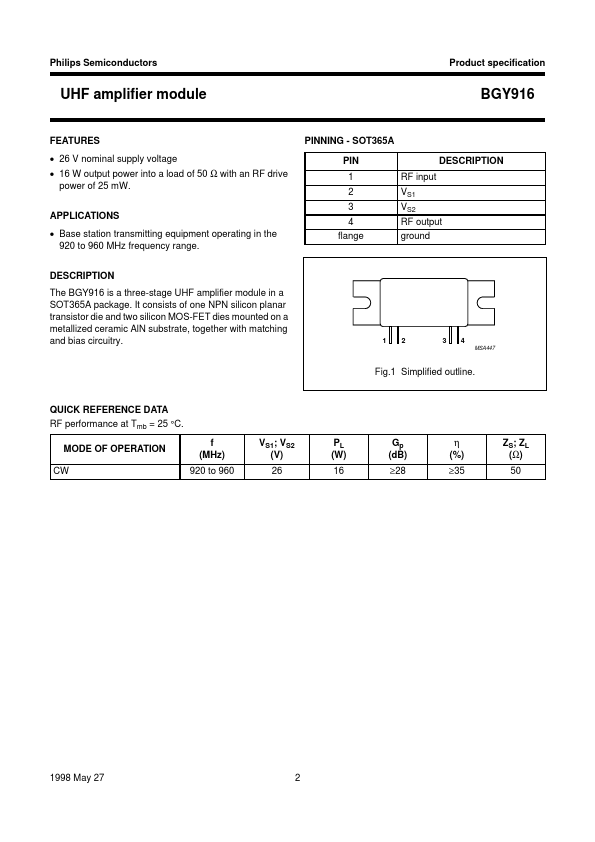

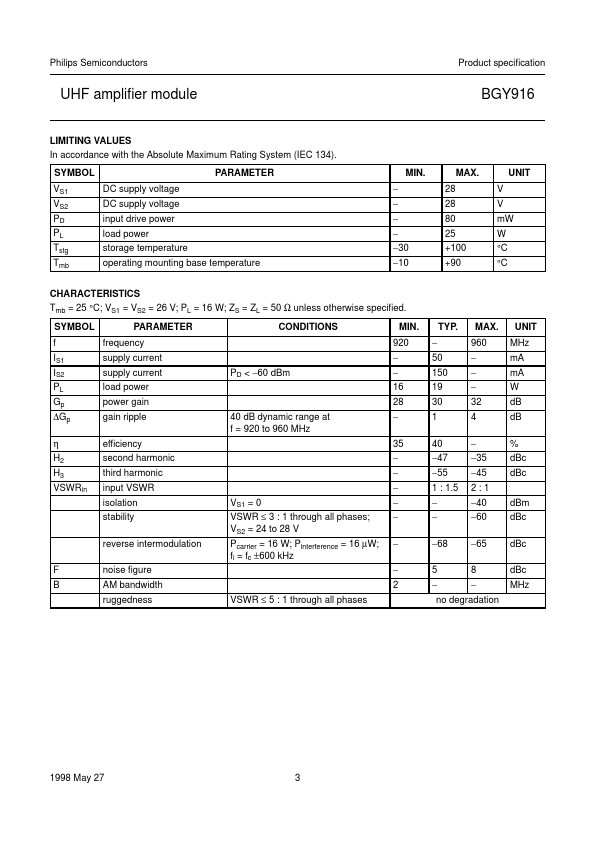

DISCRETE SEMICONDUCTORS DATA SHEET handbook, halfpage M3D167 BGY916 UHF amplifier module Product speciﬁcation Supersedes data of 1997 Jul 11 1998 M.
