BST76 Datasheet - NXP

BST76_PhilipsSemiconductors.pdf

BST76 Datasheet Preview — Preview of BST76 PDF

Datasheet Details

Part number:

BST76

Manufacturer:

NXP ↗

File Size:

78.28 KB

Description:

N-channel transistor.

BST76, N-channel transistor

N-channel enhancement mode vertical D-MOS transistor in a SOT54 (TO-92) variant package.

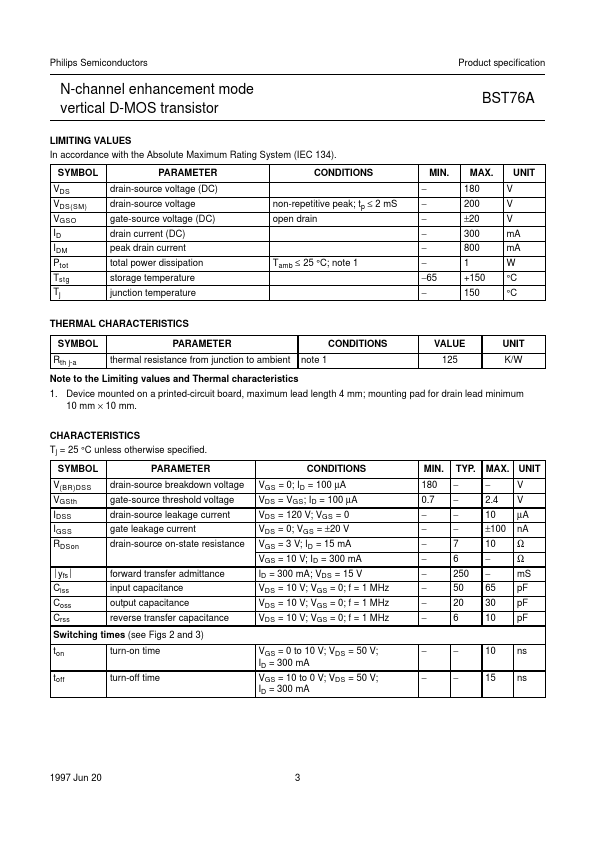

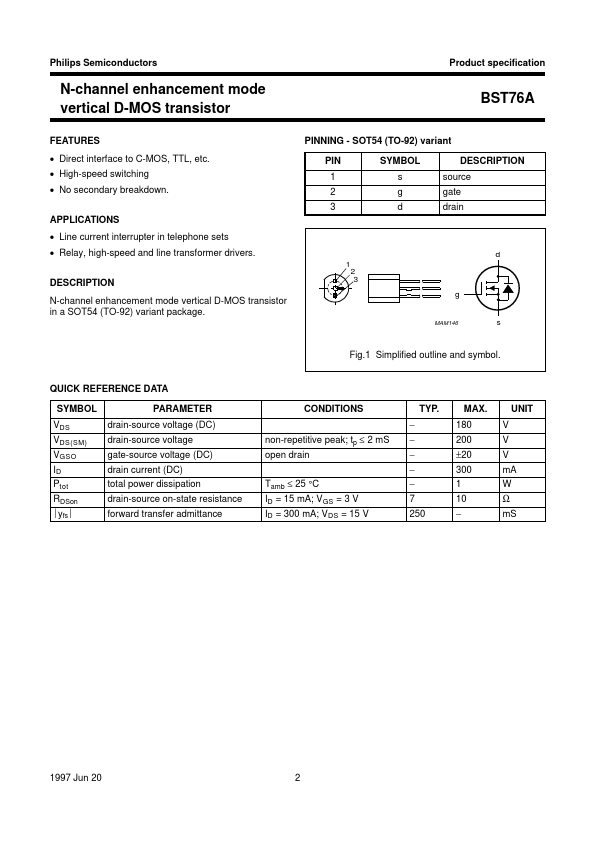

handbook, halfpage BST76A PINNING - SOT54 (TO-92) variant PIN 1 2 3 SYMBOL s g d DESCRIPTION source gate drain d 1 2 3 g MAM146 s Fig.1 Simplified outline and symbol.

QUICK REFERENCE DATA SYMBOL VDS VDS(
