BT1308W-600D 4Q Triac

NXP

BT1308W-600D Description

SOT223 BT1308W-600D 4Q Triac 20 August 2013 Product data sheet 1.General .
Planar passivated four quadrant triac in a SOT223 surface-mountable plastic package.

BT1308W-600D Features

* Direct interfacing to logic level ICs
* Direct interfacing to low power gate drivers and microcontrollers
* High blocking voltage capability
* Planar passivated for voltage ruggedness and reliability
* Surface-mountable package
* Triggering in all fo

BT1308W-600D Applications

* AC Fan controller
* General purpose low power phase control
* General purpose low power switching 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VDRM repetitive peak offstate voltage ITSM non-repetitive peak on- full sine wave; Tj(

📥 Download Datasheet

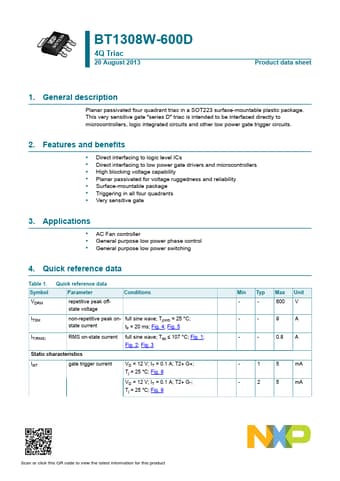

BT1308W-600D Datasheet Preview — Preview of BT1308W-600D PDF

Datasheet Details

Part number: BT1308W-600D
Manufacturer: NXP ↗
File Size: 228.51 KB
Datasheet: BT1308W-600D-NXP.pdf
Description: 4Q Triac
