BT1306-600D, BT1306-400D Logic level triac

📥 Download Datasheet  Datasheet Preview Page 1

Description

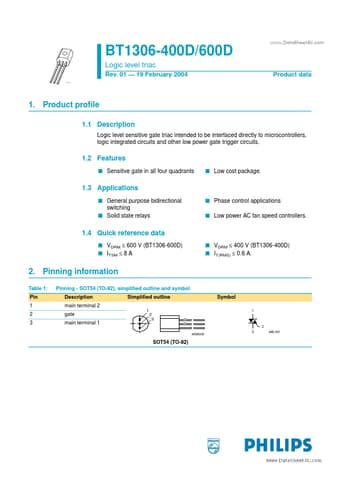

www.DataSheet4U.com BT1306-400D/600D Logic level triac Rev.01 * 19 February 2004 M3D186 Product data 1.Product profile 1.1 .
Logic level sensitive gate triac intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger ci.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BT1306-600D, BT1306-400D. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BT1306-600D, BT1306-400D
Manufacturer
NXP ↗ Semiconductors
File Size
102.89 KB
Datasheet
BT1306-400D_NXPSemiconductors.pdf
Description
Logic level triac
Note
This datasheet PDF includes multiple part numbers: BT1306-600D, BT1306-400D.
Please refer to the document for exact specifications by model.

Applications

* s General purpose bidirectional switching s Solid state relays s Phase control applications s Low power AC fan speed controllers. 1.4 Quick reference data s VDRM ≤ 600 V (BT1306-600D) s ITSM ≤ 8 A s VDRM ≤ 400 V (BT1306-400D) s IT(RMS) ≤ 0.6 A. 2. Pinning information Table 1: Pin 1 2 3 Pinning - S
