BT136-800E - 4Q Triac

Description

Planar passivated sensitive gate four quadrant triac in a SOT78 plastic package intended for use in general purpose bidirectional switching and phase control applications.

Features

  • Direct triggering from low power drivers and logic ICs.
  • High blocking voltage capability.
  • Low holding current for low current loads and lowest EMI at commutation.
  • Planar passivated for voltage ruggedness and reliability.
  • Sensitive gate.
  • Triggering in all four quadrants 3.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BT136-800E 4Q Triac WeEn
BT136-800E Triac BLUE ROCKET ELECTRONICS
BT136-800E Thyristor INCHANGE
BT136-800E Triac CDIL
BT136-800 4 Quadrants Triacs ADV

Other Datasheets by NXP Semiconductors

Part Number Description
BT136-800 Triacs
BT136-800F Triacs
BT136-800G Triacs
BT136-500 Triacs
BT136-500D Triacs logic level

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

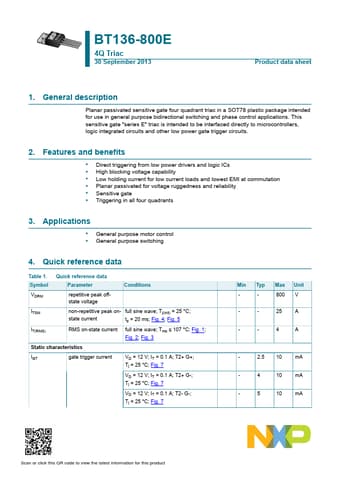

TO-220AB BT136-800E 4Q Triac 30 September 2013 Product data sheet 1. General description Planar passivated sensitive gate four quadrant triac in a SOT78 plastic package intended for use in general purpose bidirectional switching and phase control applications. This sensitive gate "series E" triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. 2. Features and benefits • Direct triggering from low power drivers and logic ICs • High blocking voltage capability • Low holding current for low current loads and lowest EMI at commutation • Planar passivated for voltage ruggedness and reliability • Sensitive gate • Triggering in all four quadrants 3.
