BTA151-800R - Thyristors sensitive gate

BTA151-800R Description

Philips Semiconductors Product specification Thyristors sensitive gate GENERAL .
Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications.

BTA151-800R Applications

* BTA151 series QUICK REFERENCE DATA SYMBOL VDRM, VRRM IT(AV) IT(RMS) ITSM PARAMETER BTA151Repetitive peak off-state voltages Average on-state current RMS on-state current Non-repetitive peak on-state current MAX. MAX. MAX. UNIT 500R 500 7.5 12 100 650R 650 7.5 12 100 800R 800 7.5 12 100 V A A A P

📥 Download Datasheet

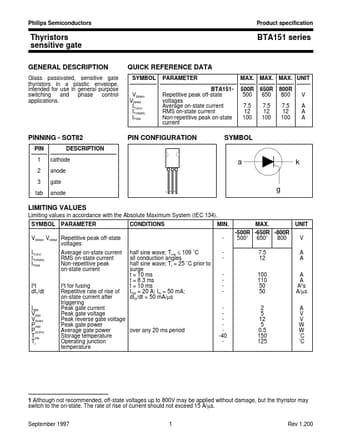

Preview of BTA151-800R PDF
datasheet Preview Page 2 datasheet Preview Page 3
