BTA1505E3 Datasheet - CYStech

PNP Epitaxial Planar Transistor

BTA1505E3 General Description

The BTA1505E3 is a PNP Darlington transistor, designed for use in general purpose amplifier and low speed switching application. Pb-free lead plating package process is adopted. Equivalent Circuit BTA1505E3 Outline TO-220 ≒6K B：Base C：Collector E：Emitter BCE Ordering Information Device BTA150.

BTA1505E3 Datasheet (258.52 KB)

BTA1505E3 Datasheet Preview — Preview of BTA1505E3 PDF

Datasheet Details

Part number:

BTA1505E3

Manufacturer:

CYStech

File Size:

258.52 KB

Description:

Pnp epitaxial planar transistor.

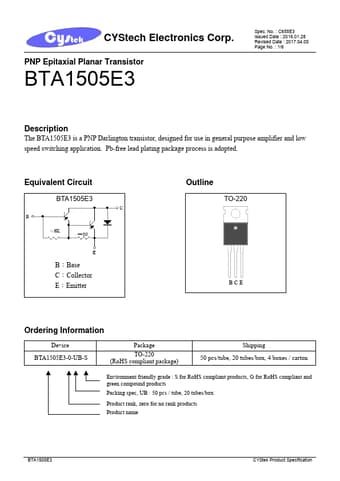

CYStech Electronics Corp. PNP Epitaxial Planar Transistor BTA1505E3 Spec. No. : C655E3 Issued Date : 2016.01.28 Revised Date : 2017.04.05 Page No. : .
