BTA1036N3 - General Purpose PNP Epitaxial Planar Transistor

Product Overview

📥 Download Datasheet

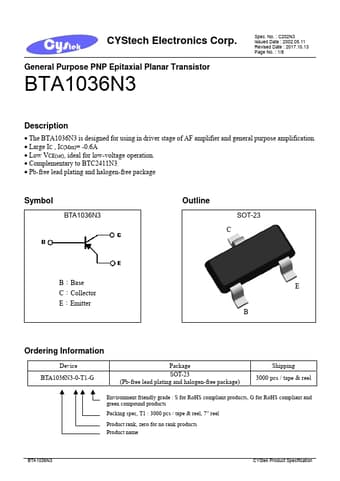

Datasheet preview – BTA1036N3

Datasheet Details

Part number BTA1036N3
Manufacturer CYStech
File Size 271.33 KB
Description General Purpose PNP Epitaxial Planar Transistor
Datasheet download datasheet BTA1036N3 Datasheet
Additional preview pages of the BTA1036N3 datasheet.

Product details

Description

The BTA1036N3 is designed for using in driver stage of AF amplifier and general purpose amplification. Large IC , IC(Max)= -0.6A Low VCE(sat), ideal for low-voltage operation. Complementary to BTC2411N3. Pb-free lead plating and halogen-free package Symbol BTA1036N3 Outline SOT-23 C B：Base C：Collector E：Emitter E B Ordering Information Device BTA1036N3-0-T1-G Package SOT-23 (Pb-free lead plating and halogen-free package) Shipping 3000 pc
