BTA10-600BW, BTA10, logic level and standard Triacs

BTA10, BTB10 T1035, T1050 Datasheet 10 A Snubberless™, logic level and standard Triacs A2 G A1 A2 TO-220AB G A2 A1 A2 G A1 A2 TO-220AB Ins.D²PAK.
Available either in through-hole or surface mount packages, the BTA10, BTB10 and T10xx Triac series are suitable for general purpose mains power AC sw.

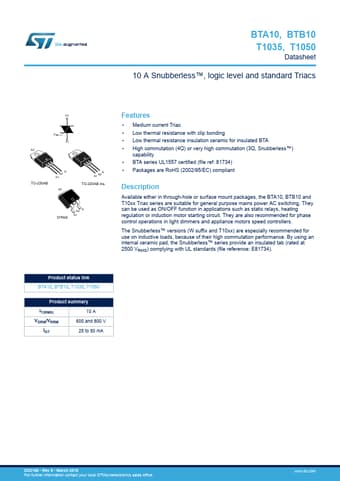

datasheet Preview Page 1 from Datasheet4u.com

BTA10-STMicroelectronics.pdf

BTA10-600BW Datasheet Preview — This datasheet PDF includes multiple part numbers: BTA10-600BW, BTA10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BTA10-600BW, BTA10

Manufacturer:

STMicroelectronics ↗

File Size:

229.02 KB

Description:

logic level and standard Triacs

Note:

This datasheet PDF includes multiple part numbers: BTA10-600BW, BTA10.
Please refer to the document for exact specifications by model.

Features

* Medium current Triac
* Low thermal resistance with clip bonding
* Low thermal resistance insulation ceramic for insulated BTA
* High commutation (4Q) or very high commutation (3Q, Snubberless™) capability
* BTA series UL1557 certified (file ref: 81734)

Applications

* such as static relays, heating regulation or induction motor starting circuit. They are also recommended for phase control operations in light dimmers and appliance motors speed controllers. The Snubberless™ versions (W suffix and T10xx) are especially recommended for use on inductive loads, because
