BTA10-400GP

TRIACS

BTA10-400GP Features

* LOW IH = 13mA max HIGH SURGE CURRENT : ITSM = 120A IGT SPECIFIED IN FOUR QUADRANTS INSULATING VOLTAGE = 2500V(RMS) (UL RECOGNIZED : E81734) DESCRIPTION The BTA10 GP’s use high performance, glass passivated chips. The insulated TO220AB package, the high surge current and low holding current make thi

BTA10-400GP General Description

The BTA10 GP’s use high performance, glass passivated chips. The insulated TO220AB package, the high surge current and low holding current make this family well adapted to LIGHT DIMMER applications. ABSOLUTE RATINGS (limiting values) Symbol IT(RMS) ITSM RMS on-state current (360° conduction angle) N.

BTA10-400GP Datasheet (60.44 KB)

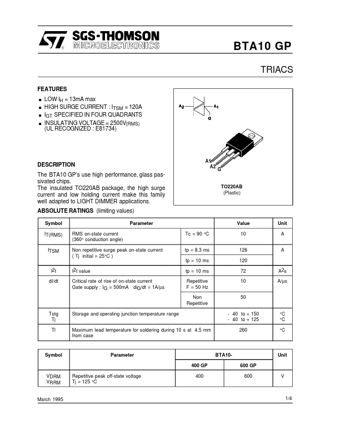

Preview of BTA10-400GP PDF

Datasheet Details
