BUK9520-55 TrenchMOS transistor Logic level FET

BUK9520-55 Description

Philips Semiconductors Product specification TrenchMOS™ transistor Logic level FET GENERAL .
N-channel enhancement mode logic level field-effect power transistor in a plastic envelope using ’trench’ technology.

BUK9520-55 Applications

* BUK9520-55 QUICK REFERENCE DATA SYMBOL VDS ID Ptot Tj RDS(ON) PARAMETER Drain-source voltage Drain current (DC) Total power dissipation Junction temperature Drain-source on-state resistance VGS = 5 V MAX. 55 52 116 175 20 UNIT V A W ˚C mΩ PINNING - TO220AB PIN 1 2 3 tab gate drain source drain D

📥 Download Datasheet

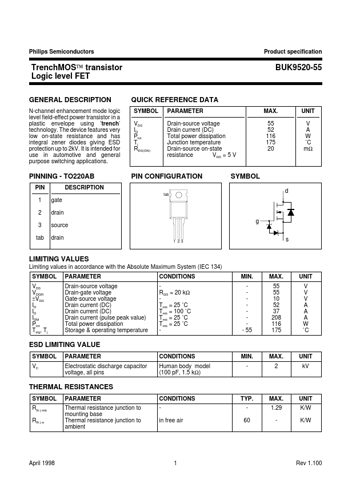

Preview of BUK9520-55 PDF
