BUK9506-40B - N-Channel MOSFET

Datasheet Summary

Description

N-channel enhancement mode ﬁeld-effect power transistor in a plastic package using Philips High-Performance Automotive (HPA) TrenchMOS™ technology.

Product availability: BUK9506-40B in SOT78 (TO-220AB) BUK9606-40B in SOT404 (D2-PAK).

Features

s Very low on-state resistance s 175 °C rated s Q101 compliant s Logic level compatible. 1.3.

Datasheet Details

Part number	BUK9506-40B
Manufacturer	NXP Semiconductors
File Size	306.13 KB
Description	N-Channel MOSFET
Datasheet	BUK9506-40B Datasheet
Additional preview pages of the BUK9506-40B datasheet.

📁 Similar Datasheet

BUK9506-30 - TrenchMOS transistor Logic level FET (NXP)

BUK9506-55A - TrenchMOS transistor Logic level FET (NXP)

BUK9506-55B - (BUK9x06-55B) N-channel TrenchMOSTM logic level FET (NXP)

BUK9504-40A - (BUK9x04-40A) TrenchMOS logic level FET (NXP)

BUK9505-30A - TrenchMOS transistor Logic level FET (NXP)

BUK9507-30B - (BUK9x07-30B) TrenchMOS logic level FET (NXP)

BUK9508-55 - TrenchMOS transistor Logic level FET (NXP)

BUK9508-55A - logic level FET (NXP)

BUK9508-55A - transistor Logic level FET (Philips)

Full PDF Text Transcription

Click to expand full text

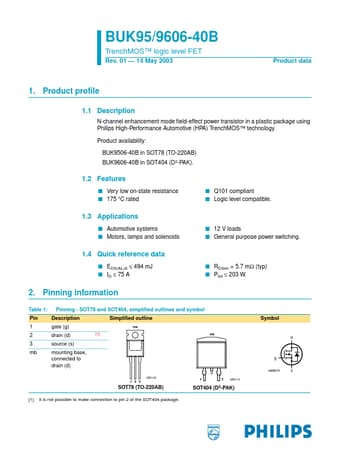

BUK95/9606-40B TrenchMOS™ logic level FET Rev. 01 — 14 May 2003 Product data 1. Product proﬁle 1.1 Description N-channel enhancement mode ﬁeld-effect power transistor in a plastic package using Philips High-Performance Automotive (HPA) TrenchMOS™ technology. Product availability: BUK9506-40B in SOT78 (TO-220AB) BUK9606-40B in SOT404 (D2-PAK). 1.2 Features s Very low on-state resistance s 175 °C rated s Q101 compliant s Logic level compatible. 1.3 Applications s Automotive systems s Motors, lamps and solenoids s 12 V loads s General purpose power switching. 1.4 Quick reference data s EDS(AL)S ≤ 494 mJ s ID ≤ 75 A s RDSon = 5.7 mΩ (typ) s Ptot ≤ 203 W. 2.
