Part number: BUK9506-30
Manufacturer: NXP (https://www.nxp.com/)
File Size: 48.08KB
Download: 📄 Datasheet

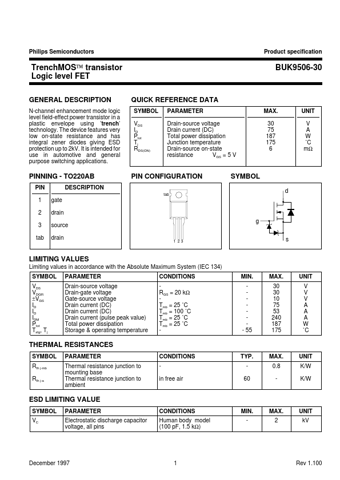

Description: TrenchMOS transistor Logic level FET
N-channel enhancement mode logic level field-effect power transistor in a plastic envelope using ’trench’ technology. The device features very low on-state resistance and has integral zener diodes giving ESD protection up to 2kV. It is intended for u.
very low on-state resistance and has integral zener diodes giving ESD protection up to 2kV. It is intended for use in automotive and general purpose switching application.
BUK9506-30
QUICK REFERENCE DATA
SYMBOL VDS ID Ptot Tj RDS(ON) PARAMETER Drain-source voltage Drain current (DC) Total.
