BUK9506-55A - TrenchMOS transistor Logic level FET

BUK9506-55A Description

Philips Semiconductors Product specification TrenchMOS™ transistor Logic level FET GENERAL .
N-channel enhancement mode logic level field-effect power transistor in a plastic envelope using ’trench’ technology which features very low on-state.

BUK9506-55A Applications

* BUK9506-55A QUICK REFERENCE DATA SYMBOL VDS ID Ptot Tj RDS(ON) PARAMETER Drain-source voltage Drain current (DC) Total power dissipation Junction temperature Drain-source on-state resistance VGS = 5 V VGS = 10 V MAX. 55 75 230 175 6.3 5.8 UNIT V A W ˚C mΩ mΩ PINNING - TO220AB PIN 1 2 3 tab gate

📥 Download Datasheet

Preview of BUK9506-55A PDF

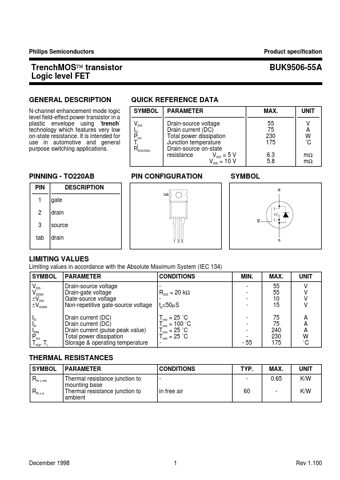

datasheet Preview Page 2 datasheet Preview Page 3
