BZT03-C10 - Voltage regulator diodes

NXP

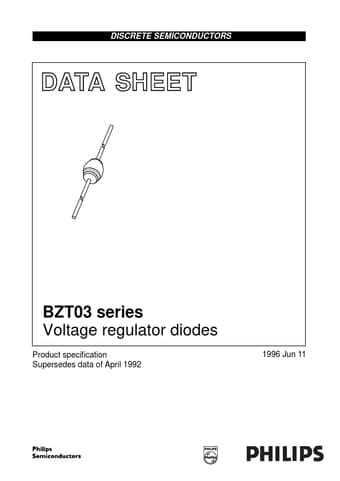

BZT03-C10 Datasheet Preview — Preview of BZT03-C10 PDF

Datasheet Details

Part number	BZT03-C10
Manufacturer	NXP ↗
File Size	46.15 KB
Description	Voltage regulator diodes
Datasheet	BZT03-C10_PhilipsSemiconductors.pdf

BZT03-C10 Product details

Description

Rugged glass SOD57 package, using a high temperature alloyed BZT03 series construction.This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.2/3 page k (Datasheet)

Features

Glass passivated.
High maximum operating temperature.
Low leakage current.
Excellent stability.
Zener working voltage range: 7.5 to 270 V for 38 types.
Transient suppressor stand-off voltage range: 6.2 to 430 V for 45 types.
Available in ammo-pack.
