BZT03-C100

Voltage regulator diodes

BZT03-C100 Features

* Glass passivated

* High maximum operating temperature

* Low leakage current

* Excellent stability

* Zener working voltage range: 7.5 to 270 V for 38 types

* Transient suppressor stand-off voltage range: 6.2 to 430 V for 45 types

* Available i

BZT03-C100 General Description

Rugged glass SOD57 package, using a high temperature alloyed BZT03 series construction. This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched. 2/3 page k (Datasheet) LIMITING VALUES In accordance with the Absolute Maximum Rating System (IE.

BZT03-C100 Datasheet (46.15 KB)

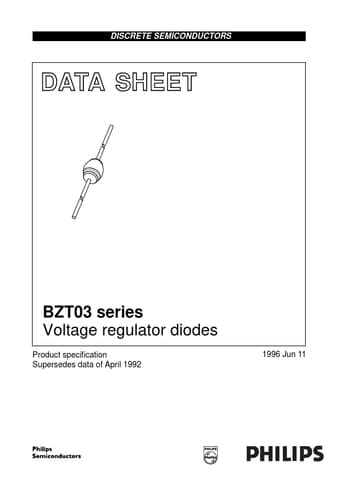

Preview of BZT03-C100 PDF

Datasheet Details

Part number:

BZT03-C100

Manufacturer:

NXP ↗

File Size:

46.15 KB

Description:

Voltage regulator diodes.
DISCRETE SEMICONDUCTORS DATA SHEET handbook, 2 columns M3D116 BZT03 series Voltage regulator diodes Product speciļ¬cation Supersedes data of April 1.
