CBTD3384 - 10-bit level shifting bus switch

CBTD3384 Description

CBTD3384 10-bit level shifting bus switch with 5-bit output enables Rev.8 * 12 December 2012 Product data sheet 1.General .
The CBTD3384 provides ten bits of high-speed TTL-compatible bus switching.

CBTD3384 Applications

* with internal diode
* 5  switch connection between two ports
* TTL-compatible control input levels
* Multiple package options
* Latch-up protection exceeds 100 mA per JESD78
* ESD protection:
* HBM JESD22-A114E exceeds 2000 V
* CDM JESD22-C101C exceeds 1000 V 3. Orderin

📥 Download Datasheet

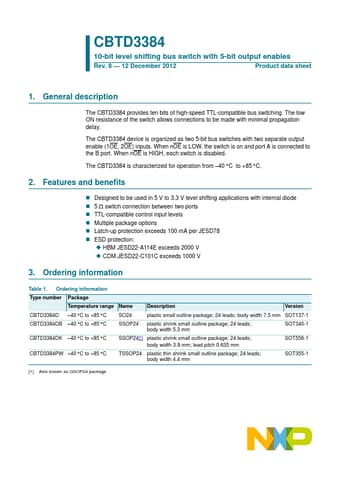

Preview of CBTD3384 PDF
