CR2427S

Video driver hybrid amplifier

CR2427S Features

* Typical transition times (10 to 90%) with CL = 8.5 pF:

* at 35 V (p-p) swing tr = 2.2 ns; tf = 2.0 ns

* at 40 V (p-p) swing tr = 2.3 ns; tf = 2.1 ns

* at 50 V (p-p) swing tr = 2.5 ns; tf = 2.2 ns

* Low power consumption

* Minimum small signal bandwid

CR2427S General Description

Hybrid amplifier module mounted in SOT348 package. PINNING PIN 1 2 3 4 5 DESCRIPTION input ground supply voltage (VS) ground output Front view 1 handbook, 2 columns CR2427S 5 MBB932 Fig.1 SOT348. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL VS Tmb Tstg.

CR2427S Datasheet (54.69 KB)

Preview of CR2427S PDF

Datasheet Details

Part number:

CR2427S

Manufacturer:

NXP ↗

File Size:

54.69 KB

Description:

Video driver hybrid amplifier.

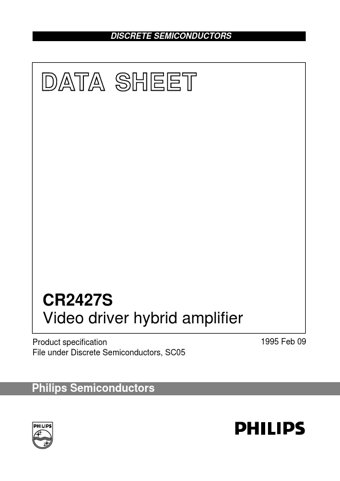

DISCRETE SEMICONDUCTORS DATA SHEET CR2427S Video driver hybrid amplifier Product speciļ¬cation File under Discrete Semiconductors, SC05 1995 Feb 09 .
