CR2430 Datasheet - Sanyo Semicon Device

CR2430 Coin Type Crimp-sealed Primary Lithium Battery

Specification of CR2430 Coin Type Crimp-sealed Primary Lithium Battery Nominal Capacity 1 Nominal Voltage Standard Discharge Current Max. Discharge Current Continuous 2 Pulse 3 Temperature Range Weight Dimensions Height (H) Diameter (D) 1 280 mAh 3V 0,3 mA 6 mA 50 mA -20°C ~ +70°C 4,0 g 3,0 mm 24,5 mm Nominal capacity is determined to an end voltage of 2,0V when the battery is allowed to discharge at a standard current level at 23°C. Current value is determined so that 50% .

CR2430 Datasheet (10.68 KB)

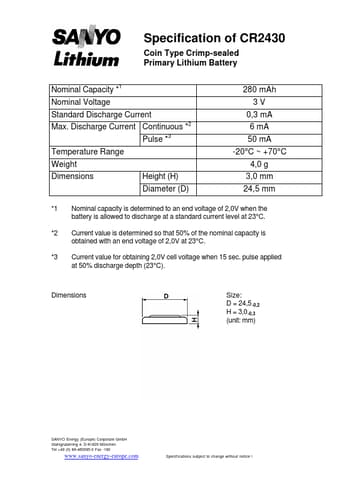

CR2430 Datasheet Preview — Preview of CR2430 PDF

Datasheet Details

Part number:

CR2430

Manufacturer:

Sanyo Semicon Device

File Size:

10.68 KB

Description:

Coin type crimp-sealed primary lithium battery.
