HEF4000B - Dual 3-input NOR gate and inverter

Datasheet Summary

Description

The HEF4000B provides the positive dual 3-input NOR function.

A single stage inverting function with standard output performance is also accomplished.

The outputs are fully buffered for highest noise immunity and pattern insensitivity of output impedance.

📥 Download Datasheet

Datasheet preview – HEF4000B

Datasheet Details

Part number HEF4000B
Manufacturer NXP
File Size 77.65 KB
Description Dual 3-input NOR gate and inverter
Datasheet download datasheet HEF4000B Datasheet
Additional preview pages of the HEF4000B datasheet.

📁 Similar Datasheet

  • HEF4001B - Quadruple 2-input NOR gate (Philips)
  • HEF4001B - Quad 2-input NOR gate (nexperia)
  • HEF4001B-Q100 - Quad 2-input NOR gate (nexperia)
  • HEF4002B - Dual 4-input NOR gate (nexperia)
  • HEF4007UB - Dual complementary pair and inverter (nexperia)
  • HEF40098B - 3-state hex inverting buffer (Philips)
  • HEF40098B - Hex inverting buffer (nexperia)
  • HEF40106B - Hex inverting Schmitt trigger (Philips)
  • HEF40106B - Hex inverting Schmitt trigger (nexperia)
  • HEF40106B-Q100 - Hex inverting Schmitt trigger (nexperia)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

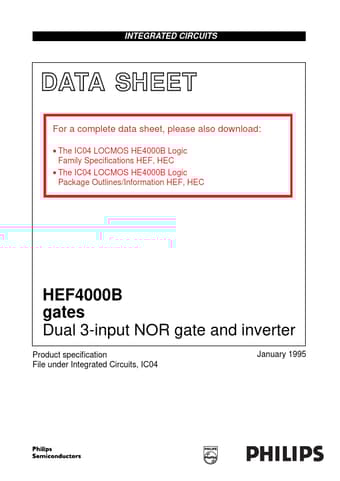

INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download: • The IC04 LOCMOS HE4000B Logic Family Specifications HEF, HEC • The IC04 LOCMOS HE4000B Logic Package Outlines/Information HEF, HEC HEF4000B gates Dual 3-input NOR gate and inverter Product specification File under Integrated Circuits, IC04 January 1995 Philips Semiconductors Product specification Dual 3-input NOR gate and inverter DESCRIPTION The HEF4000B provides the positive dual 3-input NOR function. A single stage inverting function with standard output performance is also accomplished. The outputs are fully buffered for highest noise immunity and pattern insensitivity of output impedance. HEF4000B gates Fig.2 Pinning diagram.
