IP3088CX10, IP3088CX20 Passive LC-filter Network

IP3088CX10 Description

IP3088CX5; IP3088CX10; IP3088CX15; IP3088CX20 Rev.01 * 12 February 2010 www.DataSheet4U.com Integrated 2, 4, 6 and 8-channel passive LC-fil.
IP3088CX5, IP3088CX10, IP3088CX15 and IP3088CX20 is a 2, 4, 6 and 8-channel LC low-pass filter array family which is designed to provide filtering of.

IP3088CX10 Features

* Pb-free, RoHS compliant and free of halogen and antimony (Dark Green compliant) Integrated 2, 4, 6 and 8-channel π-type LC-filter network 18 Ω channel series resistance; ≤ 45 pF (at 2.5 V DC) channel capacitance Integrated ESD protection withstanding ±15 kV co

IP3088CX10 Applications

* Cellular and Personal Communication System (PCS) mobile handsets
* Cordless telephones
* Wireless data (WAN/LAN) systems and PDAs NXP Semiconductors www. DataSheet4U. com IP3088CX5/CX10/CX15/CX20 2, 4, 6 and 8-channel passive LC-filter network with ESD protection 2. Pinni

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IP3088CX10, IP3088CX20. Please refer to the document for exact specifications by model.

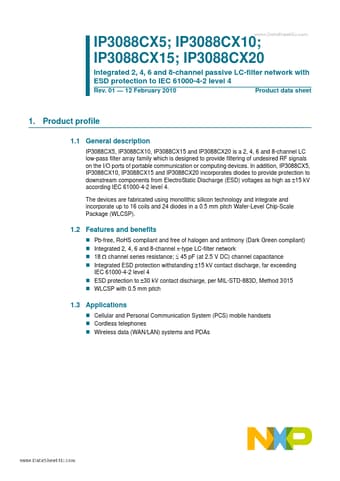

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IP3088CX10, IP3088CX20
Manufacturer
NXP ↗
File Size
489.72 KB
Datasheet
IP3088CX20_PhilipsSemiconductors.pdf
Description
Passive LC-filter Network
Note
This datasheet PDF includes multiple part numbers: IP3088CX10, IP3088CX20.
Please refer to the document for exact specifications by model.
