IP3088CX20

The IP3088CX20 is Passive LC-filter Network designed by NXP.

Product Overview

NXP

IP3088CX20 Passive LC-filter Network by NXP - Datasheet Preview — Datasheet preview – IP3088CX20

Datasheet Details

Part number	IP3088CX20
Manufacturer	NXP
File Size	489.72 KB
Description	Passive LC-filter Network
Datasheet	IP3088CX20_PhilipsSemiconductors.pdf

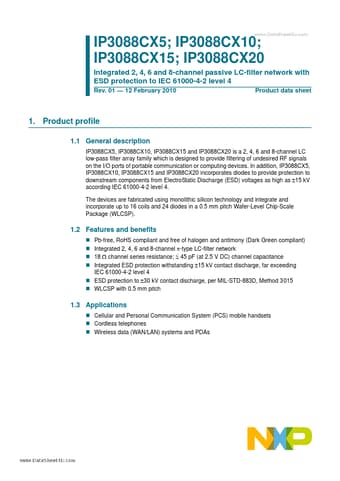

Additional preview pages of the IP3088CX20 datasheet.

Product details

Description

IP3088CX5, IP3088CX10, IP3088CX15 and IP3088CX20 is a 2, 4, 6 and 8-channel LC low-pass filter array family which is designed to provide filtering of undesired RF signals on the I/O ports of portable communication or computing devices.

Features

Pb-free, RoHS compliant and free of halogen and antimony (Dark Green compliant) Integrated 2, 4, 6 and 8-channel π-type LC-filter network 18 Ω channel series resistance; ≤ 45 pF (at 2.5 V DC) channel capacitance Integrated ESD protection withstanding ±15 kV contact discharge, far exceeding IEC 61000-4-2 level 4.
ESD protection to ±30 kV contact discharge, per MIL-STD-883D, Method 3 015.
WLCSP with 0.5 mm pitch 1.3.
