IP4856CX25C, IP4856CX25 Datasheet - NXP

IP4856CX25C SD 3.0-compliant memory card integrated dual voltage level translator

The device is an SD 3.0-compliant 6-bit bidirectional dual voltage level translator. It is designed to interface between a memory card operating at 1.8 V or 2.9 V signal levels and a host with a fixed nominal supply voltage of 1.7 V to 3.6 V. The device supports SD 3.0, SDR104, SDR50, DDR50, SDR25, .

IP4856CX25C Features

* Supports up to 208 MHz clock rate

* Feedback channel for clock synchronization

* SD 3.0 specification-compliant voltage translation to support SDR104, SDR50, DDR50, SDR25, SDR12, high-speed and default-speed modes

* 100 mA low dropout voltage regulator to supply the card-side I/Os

IP4856CX25-NXP.pdf

This datasheet PDF includes multiple part numbers: IP4856CX25C, IP4856CX25. Please refer to the document for exact specifications by model.

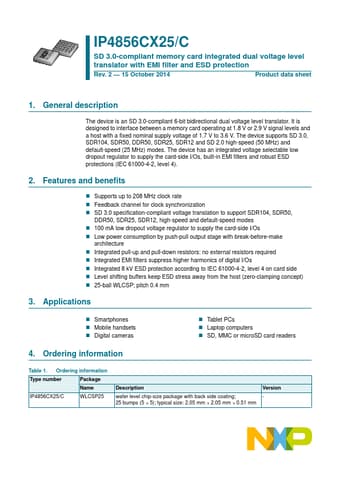

IP4856CX25C Datasheet Preview Page 2 IP4856CX25C Datasheet Preview Page 3

Datasheet Details

Part number:

IP4856CX25C, IP4856CX25

Manufacturer:

NXP ↗

File Size:

261.30 KB

Description:

Sd 3.0-compliant memory card integrated dual voltage level translator.

Note:

This datasheet PDF includes multiple part numbers: IP4856CX25C, IP4856CX25.
Please refer to the document for exact specifications by model.
