IP4221CZ6-S

ESD protection

IP4221CZ6-S Features

* System ESD protection for high-speed data lines such as USB 2.0, Ethernet and DVI

* All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of 8 kV according to IEC 61000-4-2, level 4

* Line capacitance of only 1 pF for each channel

* Leadless u

IP4221CZ6-S General Description

The device is designed to protect high-speed interfaces such as USB 2.0, Ethernet and Digital Visual Interface (DVI) against ElectroStatic Discharge (ESD). The device includes four high-level ESD protection diode structures for high-speed signal lines and is encapsulated in a leadless ultra small DF.

IP4221CZ6-S Datasheet (115.13 KB)

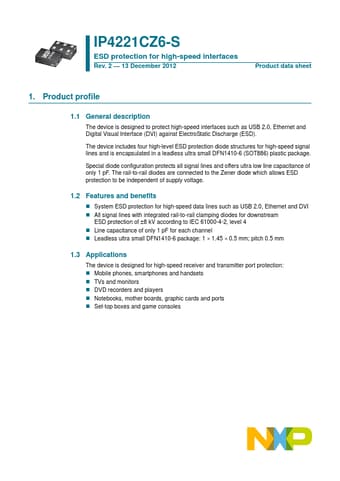

Preview of IP4221CZ6-S PDF

Datasheet Details

Part number:

IP4221CZ6-S

Manufacturer:

NXP ↗

File Size:

115.13 KB

Description:

Esd protection.
XSON6 IP4221CZ6-S ESD protection for high-speed interfaces Rev. 2 13 December 2012 Product data sheet 1. Product profile 1.1 General desc.
