IP4251 - (IP4251 - IP4254) passive filter network

IP4251 Description

IP4251/52/53/54 Rev.03 * 6 May 2009 www.DataSheet4U.com Integrated 4-, 6- and 8-channel passive filter network with ESD protection to IEC 61.
The IP425x family consists of 4-, 6- and 8-channel RC low-pass filter arrays which are designed to provide filtering of undesired RF signals on the I/O.

IP4251 Features

* I Pb-free, Restriction of the use of certain Hazardous Substances (RoHS) and dark green compliant I 4-, 6- and 8-channel integrated π-type RC filter network I IP4251CZ8/CZ12/CZ16: 100 Ω channel series resistance, 10 pF (at 2.5 V DC) channel capacitance I IP4252CZ8/CZ12/CZ16: 40 Ω channel series resis

IP4251 Applications

* I General purpose ElectroMagnetic Interference (EMI) and Radio-Frequency Interference (RFI) filtering and downstream ESD protection for: N Cellular and Personal Communication System (PCS) mobile handsets N Cordless telephones N Wireless data (WAN/LAN) systems N PDAs NXP Semiconductors IP4251/52/53/

📥 Download Datasheet

Preview of IP4251 PDF

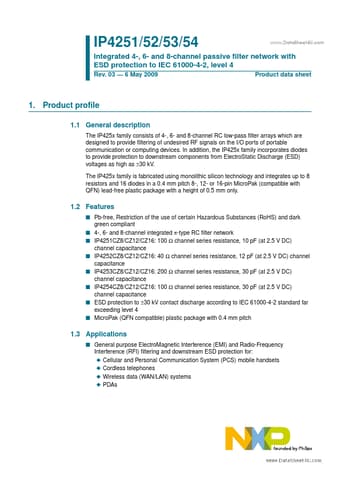

datasheet Preview Page 2 datasheet Preview Page 3
