IP4251-TTL

passive filter network

IP4251-TTL Features

* Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)

* 4-, 6- and 8-channel integrated π-type RC filter network

* ESD protection to ±30 kV contact discharge according to IEC 61000-4-2 far exceeding level 4

IP4251-TTL General Description

The devices are 4-, 6- and 8-channel RC low-pass filter arrays which are designed to provide filtering of undesired RF signals on the I/O ports of portable communication or computing devices. In addition, the devices incorporate diodes to provide protection to downstream components from ElectroStati.

IP4251-TTL Datasheet (883.04 KB)

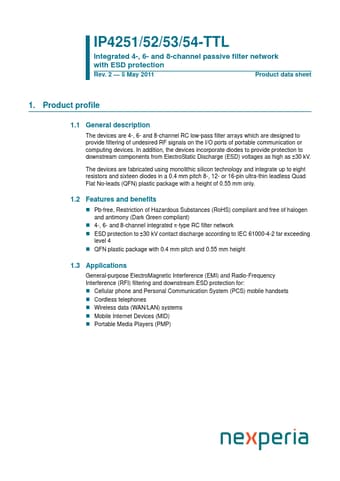

Preview of IP4251-TTL PDF

Datasheet Details

Part number:

IP4251-TTL

Manufacturer:

nexperia ↗

File Size:

883.04 KB

Description:

Passive filter network.
IP4251/52/53/54-TTL Integrated 4-, 6- and 8-channel passive filter network with ESD protection Rev. 2

* 5 May 2011 Product data sheet 1. P.
