IP4253CZ8 Datasheet - NXP Semiconductors

IP4253CZ8 passive filter network

The IP4253CZ8/CZ12/CZ16; IP4254CZ8/CZ12/CZ16 family consists of 4-, 6- and 8-channel RC low-pass filter arrays which are designed to provide filtering of undesired RF signals on the I/O ports of portable communication or computing devices. In addition, the IP4253CZ8/CZ12/CZ16; IP4254CZ8/CZ12/CZ16 fami.

IP4253CZ8 Features

* I Pb-free and dark green compliant I 4-, 6- and 8-channel integrated π-type RC filter network I IP4253CZ8/CZ12/CZ16: 200 Ω channel series resistance, 30 pF (at 2.5 V DC) channel capacitance I IP4254CZ8/CZ12/CZ16: 100 Ω channel series resistance, 30 pF (at 2.5 V DC) channel capacitance I ESD protectio

IP4253CZ8 Datasheet (82.41 KB)

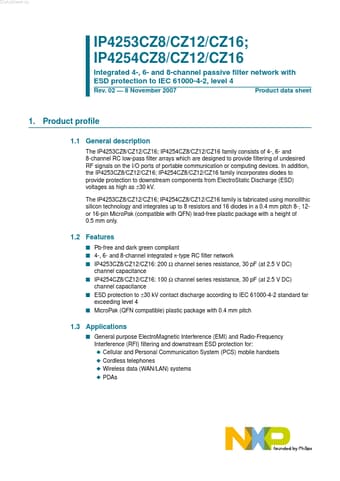

Preview of IP4253CZ8 PDF
IP4253CZ8 Datasheet Preview Page 2 IP4253CZ8 Datasheet Preview Page 3

Datasheet Details

Part number:

IP4253CZ8

Manufacturer:

NXP ↗ Semiconductors

File Size:

82.41 KB

Description:

Passive filter network.
