IP4253

(IP4251 - IP4254) passive filter network

IP4253 Features

* I Pb-free, Restriction of the use of certain Hazardous Substances (RoHS) and dark green compliant I 4-, 6- and 8-channel integrated π-type RC filter network I IP4251CZ8/CZ12/CZ16: 100 Ω channel series resistance, 10 pF (at 2.5 V DC) channel capacitance I IP4252CZ8/CZ12/CZ16: 40 Ω channel series resis

IP4253 General Description

The IP425x family consists of 4-, 6- and 8-channel RC low-pass filter arrays which are designed to provide filtering of undesired RF signals on the I/O ports of portable communication or computing devices. In addition, the IP425x family incorporates diodes to provide protection to downstream component.

IP4253 Datasheet (126.23 KB)

Preview of IP4253 PDF

Datasheet Details

Part number:

IP4253

Manufacturer:

NXP ↗ Semiconductors

File Size:

126.23 KB

Description:

(ip4251 - ip4254) passive filter network.
IP4251/52/53/54 Rev. 03

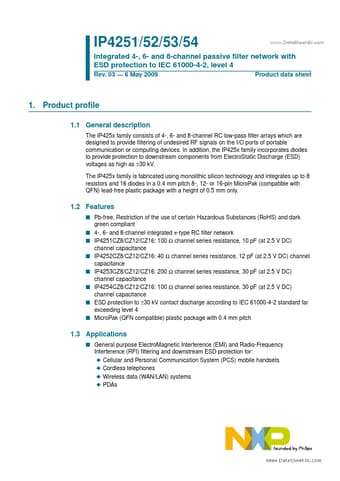

* 6 May 2009 www.DataSheet4U.com Integrated 4-, 6- and 8-channel passive filter network with ESD protection to IEC 61.
