IP4256CZ5-W, IP4256CZ3-M - Single and dual-channel passive filter network

IP4256CZ5-W Description

IP4256CZ3-M/CZ5-W/CZ6-F Single and dual-channel passive filter network with ESD protection Rev.1 * 23 July 2010 Product data sheet 1.Pro.
The IP4256CZ3-M is a single-channel low-pass filter while the IP4256CZ5-W and IP4256CZ6-F are dual-channel RC low-pass filters.

IP4256CZ5-W Features

* Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)
* 100 Ω series channel resistance and 30 pF channel capacitance at 0 V bias voltage (DC)
* ESD protection up to ±25 kV contact discharge far exceeding IEC 6

IP4256CZ5-W Applications

* against unwanted RF signals. The devices incorporate diodes to provide protection to downstream components from ESD voltages up to ±25 kV contact discharge far exceeding IEC 61000-4-2, level 4. The devices are manufactured using monolithic silicon technology in lead-free plastic packages. 1.2 Featur

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IP4256CZ5-W, IP4256CZ3-M. Please refer to the document for exact specifications by model.

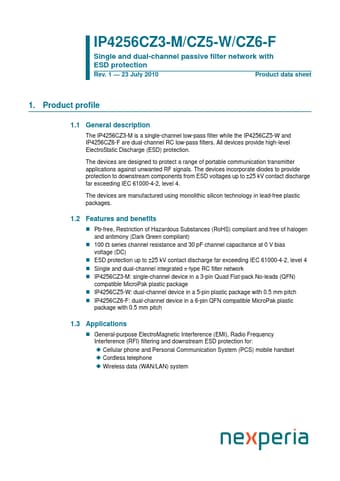

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IP4256CZ5-W, IP4256CZ3-M
Manufacturer
nexperia ↗
File Size
857.20 KB
Datasheet
IP4256CZ3-M-nexperia.pdf
Description
Single and dual-channel passive filter network
Note
This datasheet PDF includes multiple part numbers: IP4256CZ5-W, IP4256CZ3-M.
Please refer to the document for exact specifications by model.
