IP4256CZ5-M

Single and dual-channel passive filter network

IP4256CZ5-M Features

* Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)

* 100 Ω series channel resistance and 30 pF channel capacitance at 0 V bias voltage (DC)

* ESD protection up to ±25 kV contact discharge far exceeding IEC 6

IP4256CZ5-M General Description

The IP4256CZ3-M is a single-channel low-pass filter while the IP4256CZ5-W and IP4256CZ6-F are dual-channel RC low-pass filters. All devices provide high-level ElectroStatic Discharge (ESD) protection. The devices are designed to protect a range of portable communication transmitter applications agai.

IP4256CZ5-M Datasheet (271.79 KB)

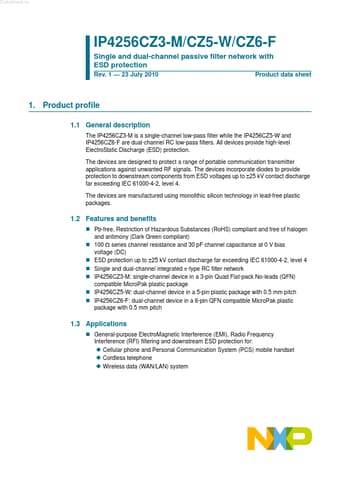

Preview of IP4256CZ5-M PDF

Datasheet Details

Part number:

IP4256CZ5-M

Manufacturer:

NXP ↗ Semiconductors

File Size:

271.79 KB

Description:

Single and dual-channel passive filter network.
DataSheet.in IP4256CZ3-M/CZ5-W/CZ6-F Single and dual-channel passive filter network with ESD protection Rev. 1

* 23 July 2010 Product data sh.
