IP4256CZ6-M, IP4256CZ3-M Datasheet - NXP Semiconductors

IP4256CZ6-M Single and dual-channel passive filter network

The IP4256CZ3-M is a single-channel low-pass filter while the IP4256CZ5-W and IP4256CZ6-F are dual-channel RC low-pass filters. All devices provide high-level ElectroStatic Discharge (ESD) protection. The devices are designed to protect a range of portable communication transmitter applications agai.

IP4256CZ6-M Features

* Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)

* 100 Ω series channel resistance and 30 pF channel capacitance at 0 V bias voltage (DC)

* ESD protection up to ±25 kV contact discharge far exceeding IEC 6

IP4256CZ3-M_NXPSemiconductors.pdf

This datasheet PDF includes multiple part numbers: IP4256CZ6-M, IP4256CZ3-M. Please refer to the document for exact specifications by model.

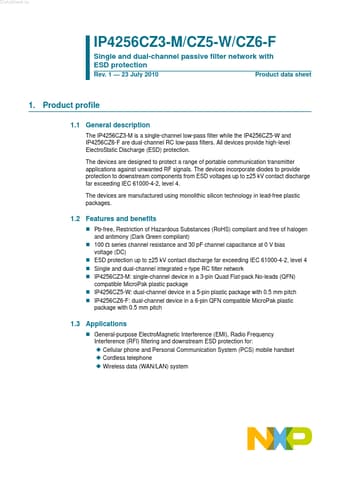

IP4256CZ6-M Datasheet Preview Page 2 IP4256CZ6-M Datasheet Preview Page 3

Datasheet Details

Part number:

IP4256CZ6-M, IP4256CZ3-M

Manufacturer:

NXP ↗ Semiconductors

File Size:

271.79 KB

Description:

Single and dual-channel passive filter network.

Note:

This datasheet PDF includes multiple part numbers: IP4256CZ6-M, IP4256CZ3-M.
Please refer to the document for exact specifications by model.
