IP4233CZ6

Ultra low capacitance ESD protection

IP4233CZ6 Features

* Pb-free and Restriction of Hazardous Substances (RoHS) compliant

* ESD protection compliant to IEC 61000-4-2 level 4, ±8 kV contact discharge

* Two low input capacitance (0.9 pF typical) back-to-back ESD protection diodes

* Very small 6-lead SOT363 package 1.3 Appl

IP4233CZ6 General Description

The IP4233CZ6 is designed to protect Input/Output (I/O) ports that are sensitive to capacitive loads, such as Ethernet, from destruction by ElectroStatic Discharge (ESD). The IP4233CZ6 incorporates two pairs of ultra low capacitance back-to-back diodes which protect components from ESD voltages as h.

IP4233CZ6 Datasheet (686.09 KB)

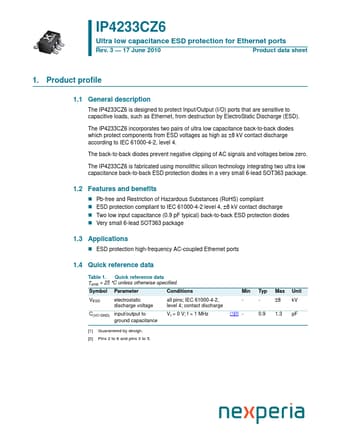

Preview of IP4233CZ6 PDF

Datasheet Details

Part number:

IP4233CZ6

Manufacturer:

nexperia ↗

File Size:

686.09 KB

Description:

Ultra low capacitance esd protection.
IP4233CZ6 Ultra low capacitance ESD protection for Ethernet ports Rev. 3 17 June 2010 Product data sheet 1. Product profile 1.1 General.
