IP4238CZ10

Surge protection

IP4238CZ10 Features

* Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)

* 30 kV IEC 61000-4-2 ESD protection of all signal lines

* 25 A surge protection 8/20 s according to IEC 61000-4-5

* Matched 0.5 mm trace spacing

* Line capac

IP4238CZ10 General Description

The device provides ElectroStatic Discharge (ESD) and surge protection on ethernet and telecom ports. It includes low capacitance protection diodes for high-speed signal lines and is encapsulated in a leadless medium power DFN2626-10 (SOT1197-1) Surface-Mounted Device (SMD) plastic package. 1 1.2 .

IP4238CZ10 Datasheet (296.93 KB)

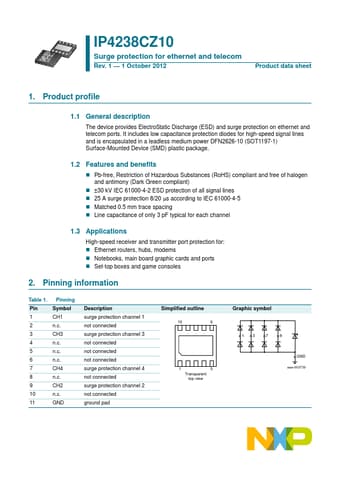

Preview of IP4238CZ10 PDF

Datasheet Details

Part number:

IP4238CZ10

Manufacturer:

NXP ↗ Semiconductors

File Size:

296.93 KB

Description:

Surge protection.
IP4238CZ10 SO T1 197 - Surge protection for ethernet and telecom Rev. 1 1 October 2012 Product data sheet 1. Product profile 1.1 General d.
