IP4223CZ6 - Dual USB 2.0 integrated ESD protection

IP4223CZ6 Description

SO T4 57 IP4223CZ6 Dual USB 2.0 integrated ESD protection Rev.1 * 17 October 2011 Product data sheet 1.Product profile 1.1 General descrip.
The IP4223CZ6 is designed to protect I/O lines sensitive to capacitive load, such as USB 2.

IP4223CZ6 Features

* Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (Dark Green compliant)
* ESD protection up to 8 kV contact discharge; IEC 61000-4-2, level 4 compliant
* Four pairs of ultra low input capacitance (C(I/O-GND) = 1.5 pF) ESD rail-to-rail prot

IP4223CZ6 Applications

* General-purpose downstream ESD protection for high-frequency analog signal ports and high-speed serial data transmission ports in:
* Cellular phone and Personal Communication System (PCS) mobile handsets
* PC/notebook USB 2.0/IEEE1394 ports
* DVI
* Cordless telephones
* Wir

📥 Download Datasheet

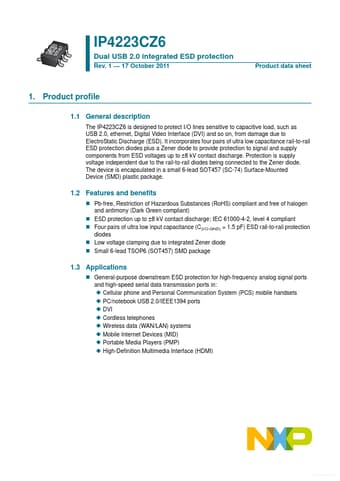

Preview of IP4223CZ6 PDF
