ISP1501 - Hi-speed Universal Serial Bus Peripheral Transceiver

Description

The ISP1501 is a full-function transceiver designed to provide a Hi-Speed Universal Serial Bus (USB) analog front-end to Application-Specific Integrated Circuits (ASICs) and Field Programmable Gate Arrays (FPGAs) with a built-in USB Serial Interface Engine (SIE).

Features

  • s s s s s s s s s s s s s s s s Complies with Universal Serial Bus Specification Rev. 2.0 Legacy compliant Original USB full-speed transceiver interface Bus-powered capability with suspend mode Integrated parallel-to-serial converter (transmit) and serial-to-parallel converter (receive) for Hi-Speed USB data Hi-Speed USB data recovery upon receiving Hi-Speed USB data synchronization upon transmitting Integrated bit stuffing and de-stuffing for Hi-Speed USB data Non-Return-to-Zero Inverted (NRZI) en.

📥 Download Datasheet

Datasheet preview – ISP1501

Datasheet Details

Part number ISP1501
Manufacturer NXP
File Size 770.47 KB
Description Hi-speed Universal Serial Bus Peripheral Transceiver
Datasheet download datasheet ISP1501 Datasheet
Additional preview pages of the ISP1501 datasheet.

📁 Similar Datasheet

  • ISP1507 - High Performance Bluetooth 5 Ready Low Energy Module (Insight SiP)
  • ISP1507A - ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver (NXP Semiconductors)
  • ISP1507B - ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver (NXP Semiconductors)
  • ISP1510 - Smart Ultra Wide Band and Bluetooth Low Energy Module (Insight SiP)
  • ISP1562 - Hi-Speed Universal Serial Bus PCI Host Controller (NXP Semiconductors)
  • ISP1563 - Hi-Speed Universal Serial Bus PCI Host Controller (NXP Semiconductors)
  • ISP1564 - Hi-Speed USB PCI host Controller (NXP Semiconductors)
  • ISP1016E - High-Density Programmable Logic (Lattice Semiconductor)
  • ISP1032E - High-Density Programmable Logic (Lattice Semiconductor)
  • ISP1032E - High-Density Programmable Logic (Lattice Semiconductor)
Other Datasheets by NXP
  • ISP1504A - ULPI Hi Speed USB Transceiver
  • ISP1504C - ULPI Hi Speed USB Transceiver
  • ISP1505A - ULPI Hi Speed USB Transceiver
  • ISP1505C - ULPI Hi Speed USB Transceiver
  • ISP1506A - (ISP1506A/B) ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver
  • ISP1506B - (ISP1506A/B) ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver
  • ISP1507C - ULPI Hi-Speed Universal Serial Bus host and peripheral transceiver
  • ISP1507D - ULPI Hi-Speed Universal Serial Bus host and peripheral transceiver

Full PDF Text Transcription

Click to expand full text

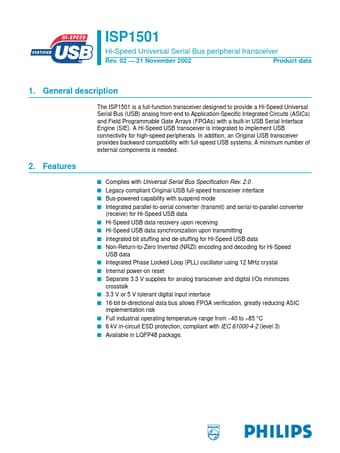

ISP1501 Hi-Speed Universal Serial Bus peripheral transceiver Rev. 02 — 21 November 2002 Product data 1. General description The ISP1501 is a full-function transceiver designed to provide a Hi-Speed Universal Serial Bus (USB) analog front-end to Application-Specific Integrated Circuits (ASICs) and Field Programmable Gate Arrays (FPGAs) with a built-in USB Serial Interface Engine (SIE). A Hi-Speed USB transceiver is integrated to implement USB connectivity for high-speed peripherals. In addition, an Original USB transceiver provides backward compatibility with full-speed USB systems. A minimum number of external components is needed. 2. Features s s s s s s s s s s s s s s s s Complies with Universal Serial Bus Specification Rev. 2.
