ISP1504A - ULPI Hi Speed USB Transceiver

Description

The ISP1504 is a Universal Serial Bus (USB) On-The-Go (OTG) transceiver that is fully compliant with Universal Serial Bus Specification Rev.

2.0, On-The-Go Supplement to the USB 2.0 Specification Rev.

1.2 and UTMI+ Low Pin Interface (ULPI) Specification Rev.

Features

  • I Fully complies with: N Universal Serial Bus Specification Rev. 2.0 N On-The-Go Supplement to the USB 2.0 Specification Rev. 1.2 N UTMI+ Low Pin Interface (ULPI) Specification Rev. 1.1 I Interfaces to host, peripheral and OTG device cores; optimized for portable devices or system ASICs with built-in USB OTG device core I Complete Hi-Speed USB physical front-end solution that supports high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) N Integrated 45 Ω ± 10 % high-speed term.

📥 Download Datasheet

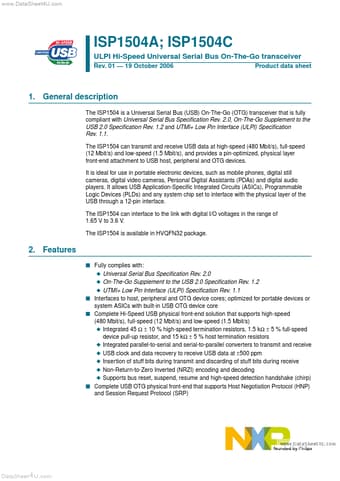

Datasheet preview – ISP1504A

Datasheet Details

Part number ISP1504A
Manufacturer NXP
File Size 1.06 MB
Description ULPI Hi Speed USB Transceiver
Datasheet download datasheet ISP1504A Datasheet
Additional preview pages of the ISP1504A datasheet.

📁 Similar Datasheet

  • ISP1507 - High Performance Bluetooth 5 Ready Low Energy Module (Insight SiP)
  • ISP1507A - ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver (NXP Semiconductors)
  • ISP1507B - ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver (NXP Semiconductors)
  • ISP1510 - Smart Ultra Wide Band and Bluetooth Low Energy Module (Insight SiP)
  • ISP1562 - Hi-Speed Universal Serial Bus PCI Host Controller (NXP Semiconductors)
  • ISP1563 - Hi-Speed Universal Serial Bus PCI Host Controller (NXP Semiconductors)
  • ISP1564 - Hi-Speed USB PCI host Controller (NXP Semiconductors)
  • ISP1016E - High-Density Programmable Logic (Lattice Semiconductor)
  • ISP1032E - High-Density Programmable Logic (Lattice Semiconductor)
  • ISP1032E - High-Density Programmable Logic (Lattice Semiconductor)
Other Datasheets by NXP
  • ISP1504C - ULPI Hi Speed USB Transceiver
  • ISP1501 - Hi-speed Universal Serial Bus Peripheral Transceiver
  • ISP1505A - ULPI Hi Speed USB Transceiver
  • ISP1505C - ULPI Hi Speed USB Transceiver
  • ISP1506A - (ISP1506A/B) ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver
  • ISP1506B - (ISP1506A/B) ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver
  • ISP1507C - ULPI Hi-Speed Universal Serial Bus host and peripheral transceiver
  • ISP1507D - ULPI Hi-Speed Universal Serial Bus host and peripheral transceiver

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com ISP1504A; ISP1504C ULPI Hi-Speed Universal Serial Bus On-The-Go transceiver Rev. 01 — 19 October 2006 Product data sheet 1. General description The ISP1504 is a Universal Serial Bus (USB) On-The-Go (OTG) transceiver that is fully compliant with Universal Serial Bus Specification Rev. 2.0, On-The-Go Supplement to the USB 2.0 Specification Rev. 1.2 and UTMI+ Low Pin Interface (ULPI) Specification Rev. 1.1. The ISP1504 can transmit and receive USB data at high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s), and provides a pin-optimized, physical layer front-end attachment to USB host, peripheral and OTG devices.
