LFE18500X

NPN silicon planar epitaxial microwave power transistor

LFE18500X Features

* Diffused emitter ballasting resistors providing excellent current sharing and withstanding a high VSWR

* Interdigitated structure provides high emitter efficiency

* Gold metallization realizes very good stability of the characteristics and excellent lifetime

* Multi

LFE18500X General Description

NPN silicon planar epitaxial microwave power transistor in a FO-231 glued cap metal ceramic flange package, with emitter connected to flange. Top view handbook, 4 columns LFE18500X QUICK REFERENCE DATA Microwave performance up to Tmb = 25 °C in a common emitter class AB amplifier. MODE OF OPERATION.

LFE18500X Datasheet (62.00 KB)

Preview of LFE18500X PDF

Datasheet Details

Part number:

LFE18500X

Manufacturer:

NXP ↗

File Size:

62.00 KB

Description:

Npn silicon planar epitaxial microwave power transistor.

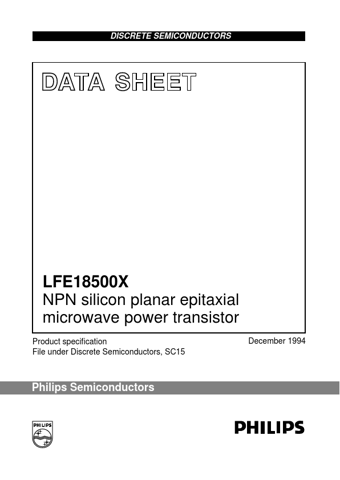

DISCRETE SEMICONDUCTORS DATA SHEET LFE18500X NPN silicon planar epitaxial microwave power transistor Product specification File under Discrete Semico.
