LPC4337, LPC4333 32-bit ARM Cortex-M4/M0 MCU

LPC4337 Description

LPC435x/3x/2x/1x 32-bit ARM Cortex-M4/M0 MCU; up to 1 MB flash and 136 kB SRAM; Ethernet, two High-speed USB, LCD, EMC Rev.5.4 * 10 January.
The LPC435X_3X_2X_1X are ARM Cortex-M4 based microcontrollers with Floating Point Unit (FPU) for embedded applications which include an ARM Cortex-M0.

LPC4337 Features

* Cortex-M4 Processor core
* ARM Cortex-M4 processor (version r0p1), running at frequencies of up to 204 MHz.
* Built-in Memory Protection Unit (MPU) supporting eight regions.
* Built-in Nested Vectored Interrupt Controller (NVIC).
* Hardware floating-point unit.
* Non-maskab

LPC4337 Applications

* which include an ARM Cortex-M0 coprocessor, up to 1 MB of flash and 136 kB of on-chip SRAM, 16 kB of EEPROM memory, two high-speed USB controllers, Ethernet, LCD, an external memory controller, a quad SPI Flash Interface (SPIFI) that supports execute-in-place, advanced configurable peripherals such

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LPC4337, LPC4333. Please refer to the document for exact specifications by model.

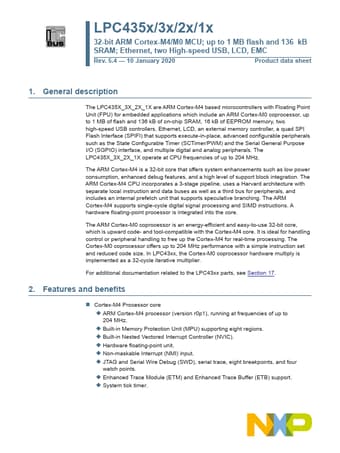

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LPC4337, LPC4333
Manufacturer
NXP ↗
File Size
7.18 MB
Datasheet
LPC4333_NXP.pdf
Description
32-bit ARM Cortex-M4/M0 MCU
Note
This datasheet PDF includes multiple part numbers: LPC4337, LPC4333.
Please refer to the document for exact specifications by model.
