MC33660 - ISO K line serial link interface

NXP

📥 Download Datasheet

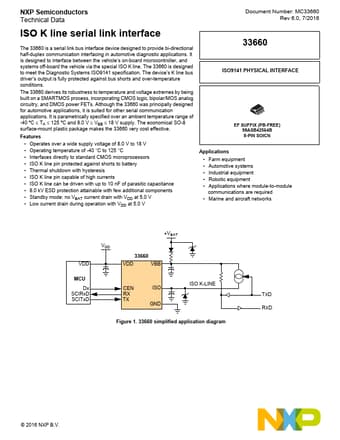

MC33660 Datasheet Preview — Preview of MC33660 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: MC33660
Manufacturer: NXP ↗
File Size: 540.81 KB
Datasheet: MC33660-NXP.pdf
Description: ISO K line serial link interface

MC33660 Product details

Features

Operates over a wide supply voltage of 8.0 V to 18 V.
Operating temperature of -40 °C to 125 °C.
Interfaces directly to standard CMOS microprocessors.
ISO K line pin protected against shorts to battery.
Thermal shutdown with hysteresis.
ISO K line pin capable of high currents.
ISO K line can be driven with up to 10 nF of parasitic capacitance.
8.0 kV ESD protection attainable with few additional components.
Standby.
