MC33664 Isolated network high-speed transceiver

MC33664 Description

MC33664 Isolated network high-speed transceiver Rev.5.0 * 27 August 2024 Product data sheet 1 General .
The MC33664 is a SMARTMOS transceiver physical layer transformer driver designed to interface a microcontroller conveniently to a high speed isolated.

MC33664 Features

* 2.0 Mbit/s isolated network communication rate
* Dual SPI architecture for message confirmation
* Robust conducted and radiated immunity with wake-up
* 3.3 V and 5.0 V compatible logic thresholds
* Low sleep mode current with automatic bus wake-up

MC33664 Applications

* Automotive communication network
* Industrial communication network
* Utility vehicle battery systems
* Forklift/mining battery systems
* Battery backup systems 4 Ordering information Table 1. Ordering information Type number Package MC33664ATL1EG[1]

📥 Download Datasheet

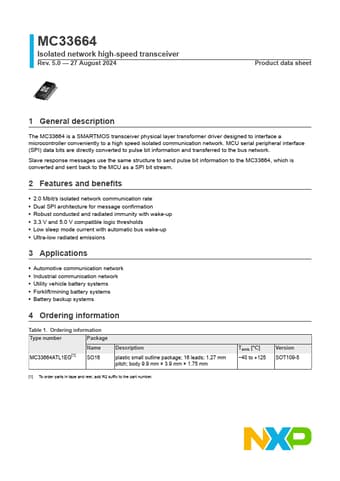

Preview of MC33664 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC33664
Manufacturer
NXP ↗
File Size
377.40 KB
Datasheet
MC33664-NXP.pdf
Description
Isolated network high-speed transceiver
