MC33771BSB2AE - Battery cell controller

This page provides the datasheet information for the MC33771BSB2AE, a member of the MC33771B_SDS Battery cell controller family.

Description

The 33771 is a SMARTMOS lithium-ion battery cell controller IC designed for automotive applications, such as hybrid electric (HEV) and electric vehicles (EV) along with industrial applications, such as energy storage systems (ESS) and uninterruptible power supply (UPS) systems.

Features

  • 9.6 V ≤ VPWR ≤ 63 V operation, 75 V transient.
  • 7 to 14 cells management.
  • Isolated 2.0 Mbps differential communication or 4.0 Mbps SPI.
  • Addressable on initialization.
  • 0.8 mV maximum total voltage measurement error.
  • Synchronized cell voltage/current measurement with coulomb count.
  • Total stack voltage measurement.
  • Seven GPIO/temperature sensor inputs.
  • 5.0 V at 5.0 mA reference supply output.
  • Automatic over/un.

📥 Download Datasheet

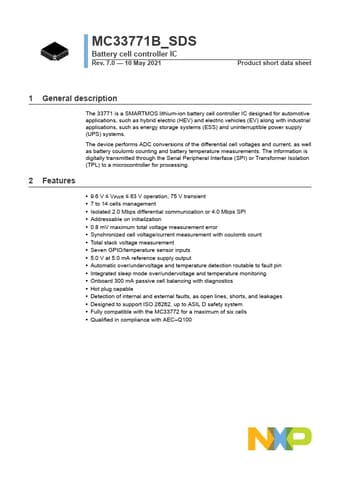

Datasheet preview – MC33771BSB2AE
