MC33FS6501NAE Datasheet - NXP

Safety power system basis chip

MC33FS6501NAE Features

* Battery voltage sensing and MUX output pin

* Highly flexible SMPS pre-regulator, allowing two topologies: non-inverting buck-boost and standard buck

* Family of devices to supply MCU core from 1.0 V to 5.0 V, with SMPS (0.8 A, 1.5 A or 2.2 A, 1.5 A or 2.2 A) or LDO (0.5 A)

MC33FS6501NAE General Description

The FS6500/FS4500 SMARTMOS devices are a multi-output, power supply, integrated circuit, including CAN Flexible Data (FD) and/or LIN transceivers, dedicated to the automotive market. Multiple switching and linear voltage regulators, including low-power mode (32 μA) are available with various wake-up.

MC33FS6501NAE Datasheet (2.94 MB)

Rating: 1 ★ (4 votes)

MC33FS6501NAE Datasheet Preview — Preview of MC33FS6501NAE PDF

Datasheet Details

Part number:

MC33FS6501NAE

Manufacturer:

NXP ↗

File Size:

2.94 MB

Description:

Safety power system basis chip.

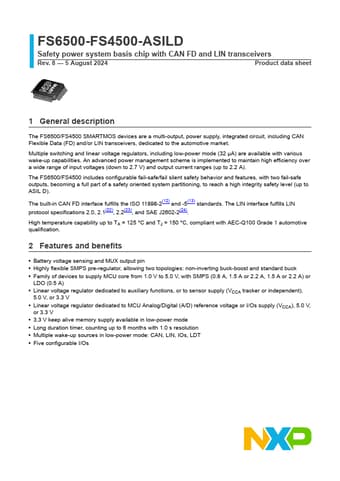

FS6500-FS4500-ASILD Safety power system basis chip with CAN FD and LIN transceivers Rev. 8 5 August 2024 Product data sheet 1 General de.
