MC33004A, MC35004 Datasheet - STMicroelectronics

MC33004A GENERAL PURPOSE QUAD J-FET OPERATIONAL AMPLIFIERS

MC33004/A/B MC34004/A/B MC35004/A/B GENERAL PURPOSE QUAD J-FET OPERATIONAL AMPLIFIERS . LOW POWER CONSUMPTION . WIDE COMMON-MODE (UP TO VCC+) AND DIFFERENTIAL VOLTAGE RANGE . LOW INPUT BIAS AND OFFSET CURRENT . OUTPUT SHORT-CIRCUIT PROTECTION . HIGH INPUT IMPEDANCE J FET INPUT STAGE . INTERNAL FREQUENCY COMPENSATION . LATCH UP FREE OPERATION . HIGH SLEW RATE : 16V/µs (typ) N DIP14 (Plastic Package) D SO14 (Plastic Micropackage) DE SC RI P TI O N These circuits are high speed J

MC35004_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: MC33004A, MC35004. Please refer to the document for exact specifications by model.

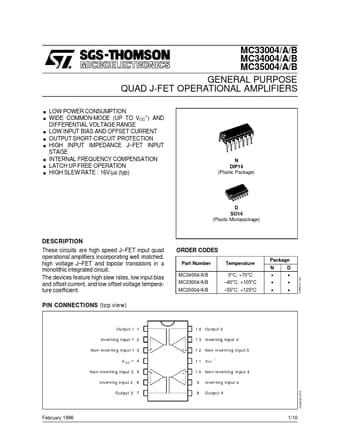

MC33004A Datasheet Preview Page 2 MC33004A Datasheet Preview Page 3

Datasheet Details

Part number:

MC33004A, MC35004

Manufacturer:

STMicroelectronics ↗

File Size:

122.59 KB

Description:

General purpose quad j-fet operational amplifiers.

Note:

This datasheet PDF includes multiple part numbers: MC33004A, MC35004.
Please refer to the document for exact specifications by model.
