MC33078

Low noise dual operational amplifier

STMicroelectronics

MC33078 Features

* Low voltage noise: 4.5 nV/√Hz

* High gain bandwidth product: 15 MHz

* High slew rate: 7 V/µs

* Low distortion: 0.002%

* Large output voltage swing: +14.3 V / -14.6 V

* Low input offset voltage

* Excellent frequency stability

* ESD protection 2 kV

* Macromodel in

MC33078 General Description

The MC33078 device is a monolithic dual operational amplifier particularly well suited for audio applications. It offers low voltage noise (4.5 nV/√Hz) and high frequency performance (15 MHz gain bandwidth product, 7 V/µs slew rate). In addition, the MC33078 device has a very low distortion (0.002%).

MC33078 Datasheet (376.85 KB)

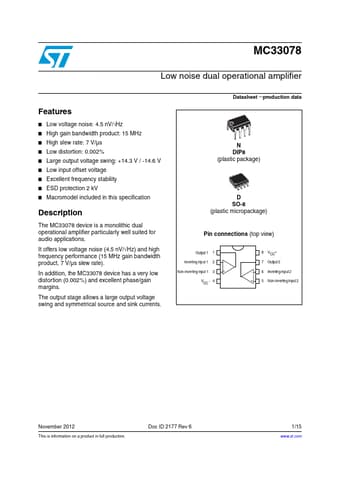

MC33078 Datasheet Preview — Preview of MC33078 PDF

Datasheet Details

Part number:

MC33078

Manufacturer:

STMicroelectronics ↗

File Size:

376.85 KB

Description:

Low noise dual operational amplifier.
