MC33071A Datasheet - ON Semiconductor

MC33071A Operational Amplifiers

Single Supply 3.0 V to 44 V Operational Amplifiers MC34071,2,4,A MC33071,2,4,A, NCV33072,4,A Quality bipolar fabrication with innovative design concepts are employed for the MC33071/72/74, MC34071/72/74, NCV33072/74A series of monolithic operational amplifiers. This series of operational amplifiers offer 4.5 MHz of gain bandwidth product, 13 V/ms slew rate and fast settling time without the use of JFET device technology. Although this series can be operated from split supplies, it is particularl.

MC33071A Features

* Wide Bandwidth: 4.5 MHz

* High Slew Rate: 13 V/ms

* Fast Settling Time: 1.1 ms to 0.1%

* Wide Single Supply Operation: 3.0 V to 44 V

* Wide Input Common Mode Voltage Range: Includes Ground (VEE)

* Low Input Offset Voltage: 3.0 mV Maximum (A Suffix)

MC33071A Datasheet (469.54 KB)

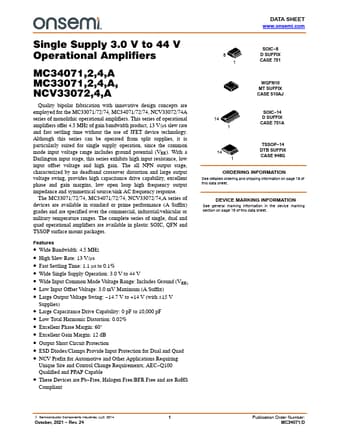

Preview of MC33071A PDF
MC33071A Datasheet Preview Page 2 MC33071A Datasheet Preview Page 3

Datasheet Details

Part number:

MC33071A

Manufacturer:

ON Semiconductor ↗

File Size:

469.54 KB

Description:

Operational amplifiers.
