MC3302 - Single Supply Quad Comparators

Product Overview

ON Semiconductor

Part number	MC3302
Manufacturer	ON Semiconductor
File Size	275.97 KB
Description	Single Supply Quad Comparators
Datasheet	MC3302 Datasheet

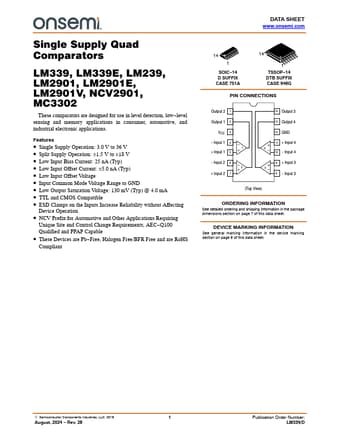

Additional preview pages of the MC3302 datasheet.

Single Supply Operation: 3.0 V to 36 V.
Split Supply Operation: ±1.5 V to ±18 V.
Low Input Bias Current: 25 nA (Typ).
Low Input Offset Current: ±5.0 nA (Typ).
Low Input Offset Voltage.
Input Common Mode Voltage Range to GND.
Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA.
TTL and CMOS Compatible.
ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation.
NCV Prefix for Automoti.
