MC33071 HIGH BANDWIDTH SINGLE SUPPLY OPERATIONAL AMPLIFIERS

Order this document by MC34071/D MC34071,2,4,A MC33071,2,4,A High Slew Rate, Wide Bandwidth, Single Supply Operational Amplifiers Quality bipolar fabrication with innovative design concepts are employed for the MC33071/72/74, MC34071/72/74 series of monolithic operational amplifiers. This series of operational amplifiers offer 4.5 MHz of gain bandwidth product, 13 V/µs slew rate and fast setting time without the use of JFET device technology. Although this series can be operated from split supp.

MC33071 Features

* E (°C) TA, AMBIENT TEMPERATURE (°C) V ICR , INPUT COMMON MODE VOLTAGE RANGE (V) Figure 5. Input Common Mode Voltage Range versus Temperature VCC VCC VCC

* 0.8 VCC

* 1.6 VCC

* 2.4 VEE +0.01 VEE VEE

* 55

* 25 0 25 50 75 100 125 VCC/VEE = +1.5 V/

* 1.5 V to

MC33071 Datasheet (346.24 KB)

Preview of MC33071 PDF

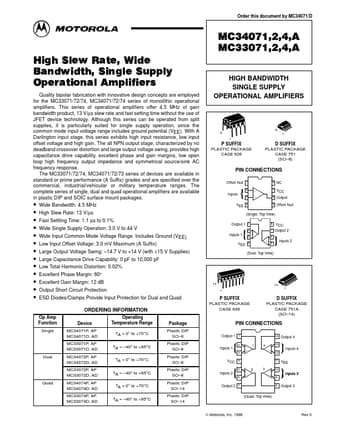

MC33071 Datasheet Preview Page 2 MC33071 Datasheet Preview Page 3
