PBYR2045CT, Rectifier diodes Schottky barrier

Philips Semiconductors Product specification Rectifier diodes Schottky barrier .
Dual, common cathode schottky rectifier diodes in a conventional leaded plastic package and a surface mounting plastic package.

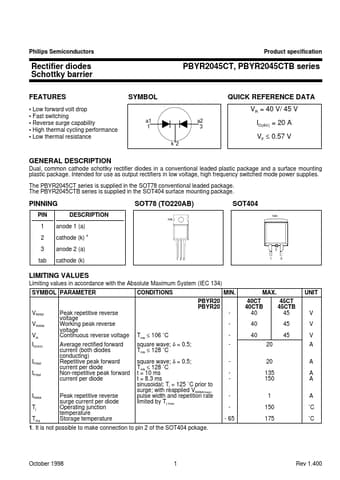

datasheet Preview Page 1 from Datasheet4u.com

PBYR2045CT_PhilipsSemiconductors.pdf

PBYR2045CT Datasheet Preview — Preview of PBYR2045CT PDF

Datasheet Details

Part number:

PBYR2045CT

Manufacturer:

NXP ↗

File Size:

42.37 KB

Description:

Rectifier diodes Schottky barrier

Features

* Low forward volt drop
* Fast switching
* Reverse surge capability
* High thermal cycling performance
* Low thermal resistance PBYR2045CT, PBYR2045CTB series SYMBOL QUICK REFERENCE DATA VR = 40 V/ 45 V a1 1 k 2 a2 3 IO(AV) = 20 A VF ≤ 0.57 V GENERAL DE

Applications

* These products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to full
